Y1K K10 Fender Rh & LH
Engineered with a focus on precision and durability, this Checking Gauge facilitates fast, repeatable, and highly accurate inspections of right-hand and left-hand fender components. The entire process—from CAD design to final manufacturing—is executed with industry-grade quality controls to ensure compliance with OEM standards.
The fixture enables quick validation of holes, edges, contours, and mounting points, thereby supporting efficient in-line and final inspection processes.
Overview

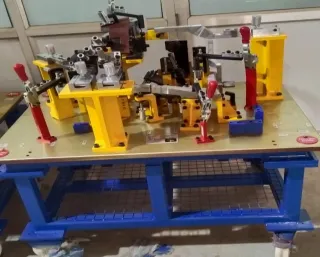

The 1K K10 Fender (RH & LH) Checking Gauge is a precision inspection fixture designed and developed by KP Engineering. This tool ensures that the fender parts meet strict quality standards before assembly, guaranteeing dimensional accuracy and proper alignment for automotive manufacturing.
This gauge plays a critical role in verifying component integrity, enhancing production efficiency, and minimizing quality rejections.
Key Features
Project-Specific Design
- Tailored specifically for the Y1K K10 Fender (RH & LH) to meet customer specifications.
Customer-Specific Design
- Customized to match the exact geometry of the Y1K K10 fender (RH & LH).

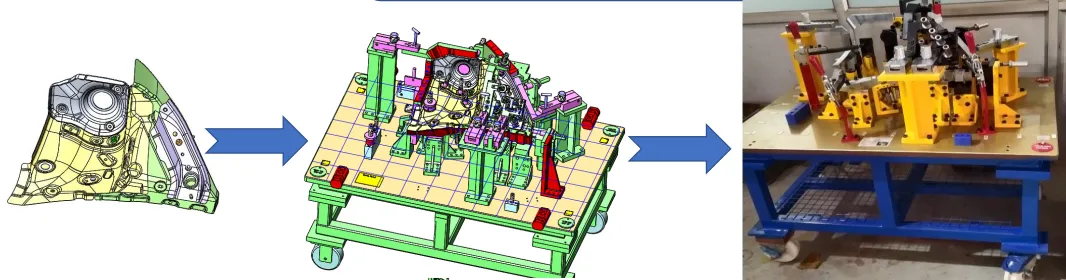

3D CAD to Reality
- High-quality 3D modeling to real-world manufacturing conversion for absolute accuracy.
Robust Structure
- Built on a steel frame trolley with heavy-duty wheels for easy mobility and long-lasting use.
Quick Inspection Points
- Equipped with precisely located locators, pins, and clamps for swift and reliable part checking.
Operator-Friendly Layout
- Easy access to key inspection points, allowing fast placement and removal of parts.
Improved Accuracy
- Ensures critical dimensions are within tolerances, reducing chances of rework or rejection.
Low Maintenance
- Built with replaceable clamps and fixtures to reduce downtime and increase operational uptime.
