YED Panel Comp. Partition

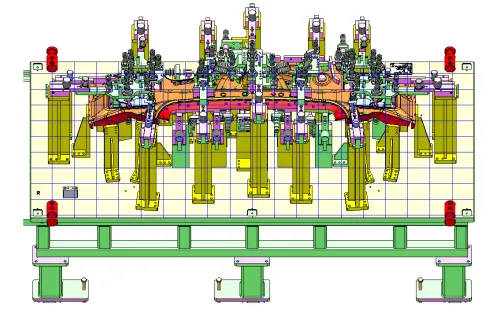

The YED Panel Comp. Partition is a vital structural component used in vehicle body assemblies. To maintain top-level precision in manufacturing, a customized checking gauge has been developed for CML (Bawal). This fixture ensures that each panel is inspected for dimensional accuracy, surface flatness, and mounting features before moving to the next stage of assembly.
Overview

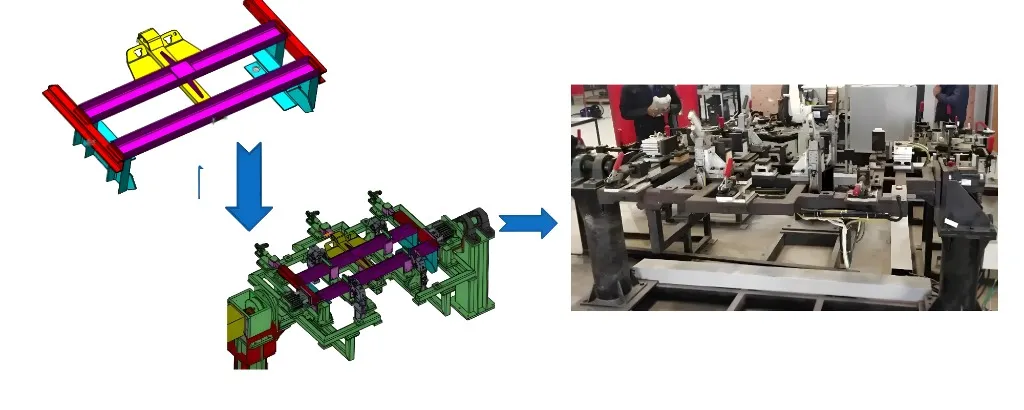

This project highlights the creation of a high-precision checking gauge specifically for the YED Panel Comp. Partition. From digital design to physical execution, the fixture supports thorough quality inspection on the shop floor. It replicates key alignment and tolerance zones, enabling the operator to identify any deviations immediately. This tool ensures smoother production flow and fewer quality issues in the final assembly line.
Key Features
Tailored Design
- Engineered to match the unique shape and complexity of the YED Panel Partition.
Robust Frame
- Made with high-strength materials to withstand repetitive inspection cycles.
Multi-point Checking
- Covers all necessary checkpoints, including slots, holes, bends, and mounting areas.
Ergonomic Setup
- Easy-to-use clamps and clear access points enhance operator efficiency.
Customer-Focused Build
- Designed as per CML (Bawal)'s standards and part specifications.
High Accuracy
- Helps detect minute dimensional shifts and defects before final welding or assembly.
