YTB Tunnel Comp. Main Floor

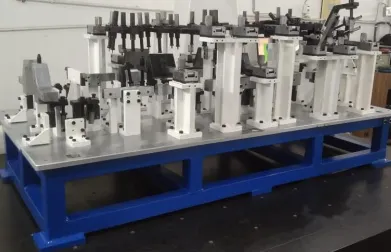

The YTB Tunnel Comp. Main Floor Checking Gauge is a high-precision inspection tool designed for dimensional validation and profile conformity of the main tunnel floor component in large vehicle body structures. Developed for CEIL, this tool ensures that the component adheres to engineering specifications and is free from defects before entering the final assembly process.
This gauge plays a critical role in quality assurance, in-line inspection, and supplier part verification, especially in mass-production automotive or rail platforms.
Overview
The YTB Tunnel Comp. Main Floor Checking Gauge is a high-precision inspection tool designed for dimensional validation and profile conformity of the main tunnel floor component in large vehicle body structures. Developed for CEIL (Gujarat), this tool ensures that the component adheres to engineering specifications and is free from defects before entering the final assembly process.
This gauge plays a critical role in quality assurance, in-line inspection, and supplier part verification, especially in mass-production automotive or rail platforms.
Key Features
Full-Length Support for Large Component
- Designed to securely hold the entire tunnel main floor panel without deformation.
Precision Locating & Datum Reference System
- Ensures accurate and repeatable part positioning using fixed datums.
Multi-Point Inspection Capability
- Allows simultaneous checking of hole positions, edge profiles, surfaces, and weld zones.
Integrated Gauging Blocks & Pins
- Includes Go/No-Go gauges for quick pass/fail results on critical features.
Heavy-Duty Base Frame Construction
- Rigid steel fabrication minimizes vibrations and ensures long-term accuracy.
Ergonomic and Operator-Friendly Layout
- Well-positioned inspection elements and open-access zones simplify manual inspection.
Mobility with Lockable Castor Wheels
- Easy movement across workstations with secure locking during inspection operations.
Suitable for Large-Scale Quality Checks
- Ideal for production lines, incoming part checks, or supplier quality verification.
