Yxa Trailing Arm RH & LH
This gauge is specifically engineered to inspect the key parameters of trailing arm components such as hole positions, profiles, and alignment points. Designed through detailed CAD modeling and fabricated with robust materials, it ensures consistent and repeatable measurements on the shop floor.
The fixture helps quality teams quickly verify the part against design specifications, ensuring compliance with OEM standards before final assembly.
Overview

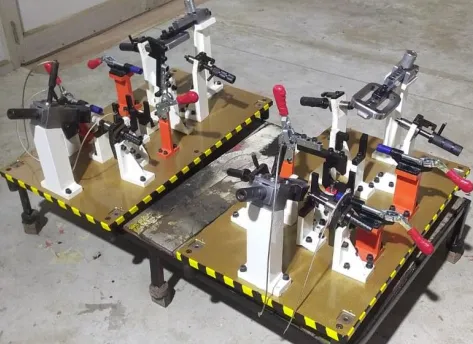

The YXA Trailing Arm RH & LH Checking Gauge is a high-precision inspection fixture developed by KP Engineering for JBM, Gurugram. It is designed to ensure accurate dimensional verification and quality control of the left and right trailing arm components used in vehicle suspension systems.
Key Features
Dual-Side Compatibility
- Designed to inspect both RH (Right Hand) and LH (Left Hand) trailing arms on a single fixture.
Client-Specific Build
- Developed as per JBM's component and quality standards.

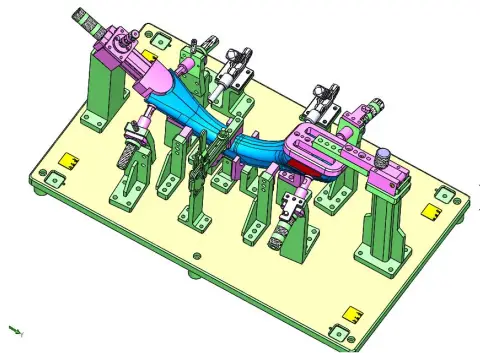

3D CAD to Physical Fixture
- Accurate realization of 3D design into functional, high-tolerance checking gauge.
Sturdy Base Construction
- Mounted on a heavy-duty frame with industrial-grade stability and finish.
High-Quality Clamping System
- Equipped with reliable clamps and locators for secure and consistent part placement.
Efficient Workflow
- Operator-friendly layout to support fast, repeatable inspections with minimal downtime.
Compact & Mobile Design
- Portable build for easy relocation within the manufacturing floor.
